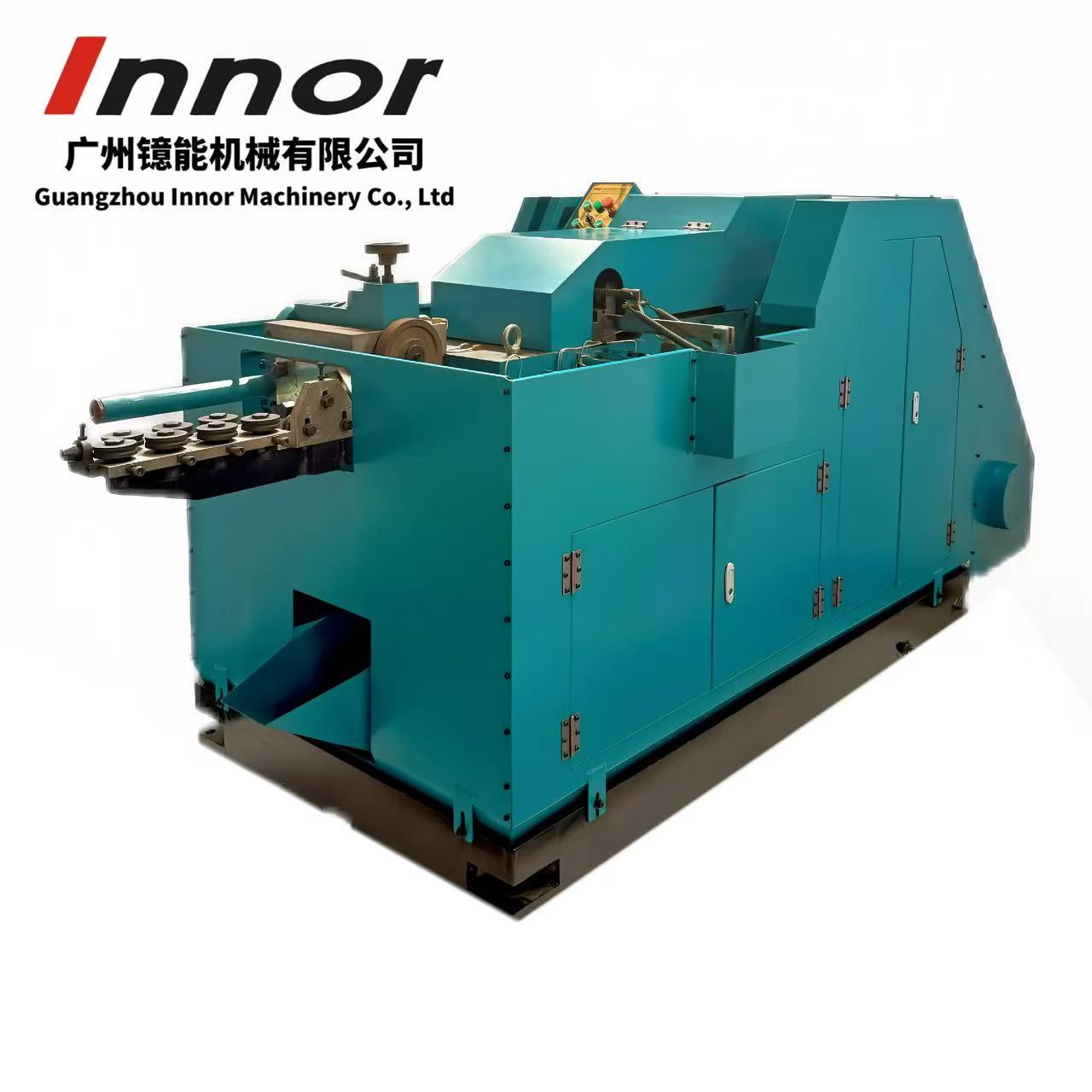

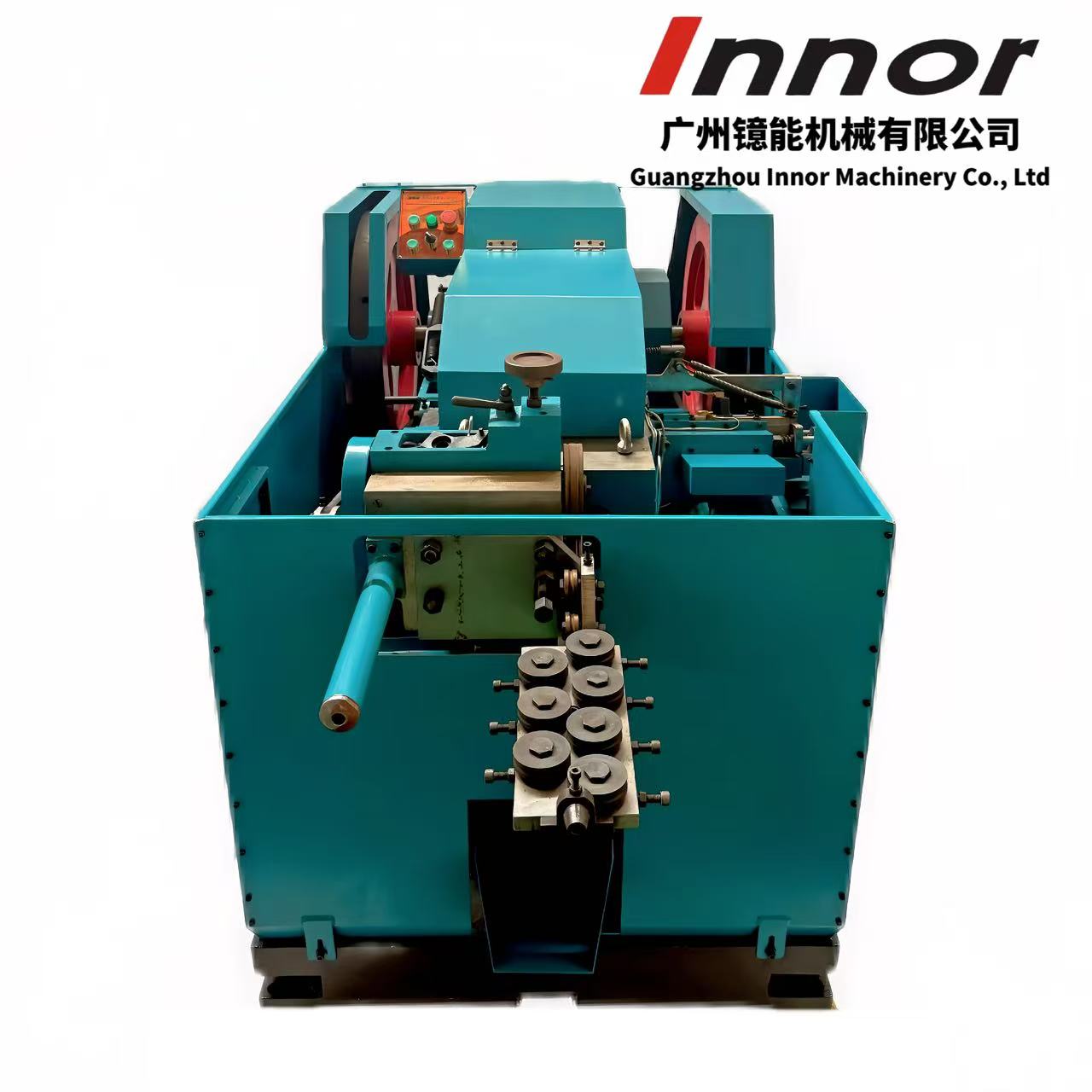

Model | ID 6 X 100 | |
Forging Station (Nos.) | 1 | |
Max. Cut-off Dia.(mm) | 6 | |
Max. Cut-off Length (mm) | 130 | |
Static Die Ejection Length (mm) (K.O Stroke) | 110 | |
Dynamic Die Ejection Length (mm) (P.K.O Stroke) | 12 | |
Shear Size (T *W *L mm) | 11.5*35*86 | |
Static Die Holder Size / Main Die Size.(mm) | Φ45*126 | |
#1,#2 Punch Die Holder Size | Φ36*80 | |
Cut-off Die Size (mm) |
Φ25 | |
Main Slider Stroke (mm) | 158 | |
Screw Size can be made(mm) | Max. Length | 100 |
Min. Length | 15 | |
Max.Output (Pcs/min.) | 70-90 | |
Main Motor (kW) | 7.5 | |
Oil Pump Motor (HP) | 1/4 | |
Weight (Kg) | 2950 | |
Dimensions(m) | 2.6*1.2*1.42 |
