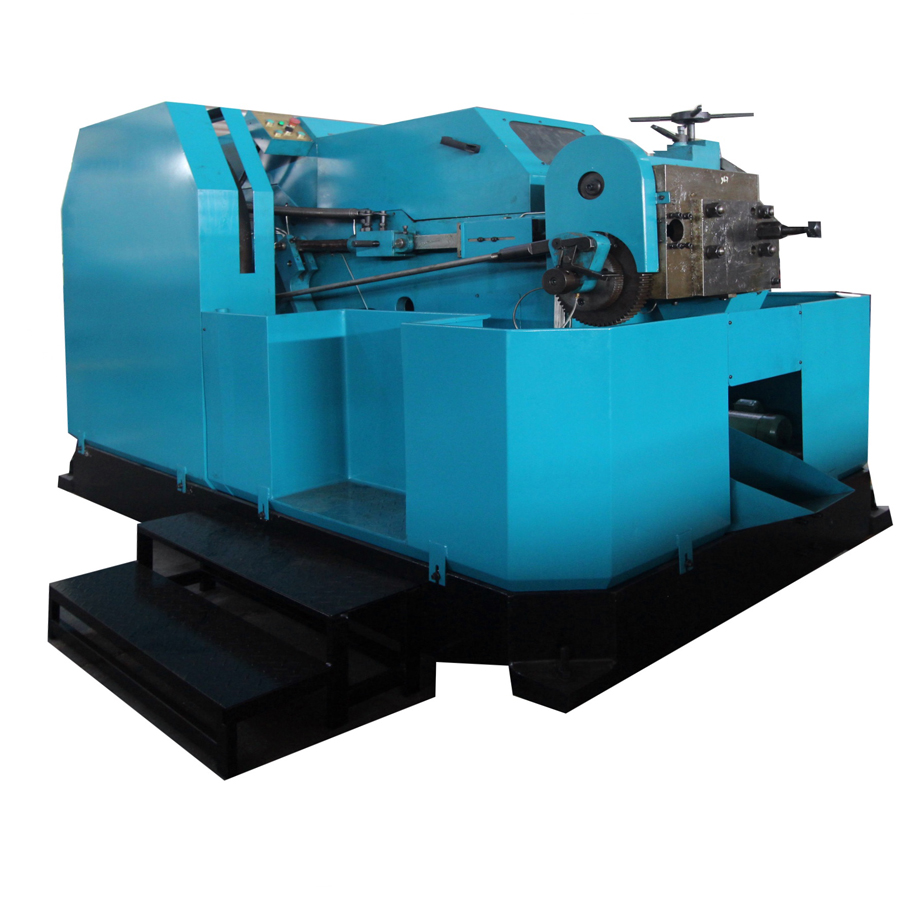

Model | ID 10 X 150 | |
Forging Station (Nos.) | 1 | |
Max. Cut-off Dia.(mm) | 10 | |
Max. Cut-off Length (mm) | 190 | |
Static Die Ejection Length (mm) (K.O Stroke) | 155 | |
Dynamic Die Ejection Length (mm) (P.K.O Stroke) | 12 | |
Shear Size (T *W *L mm) | 19*45*113 | |
Static Die Holder Size / Main Die Size.(mm) | Φ65*185 | |
#1,#2 Punch Die Holder Size | Φ48*120 | |
Cut-off Die Size (mm) |
Φ35*45 | |
Main Slider Stroke (mm) | 220 | |

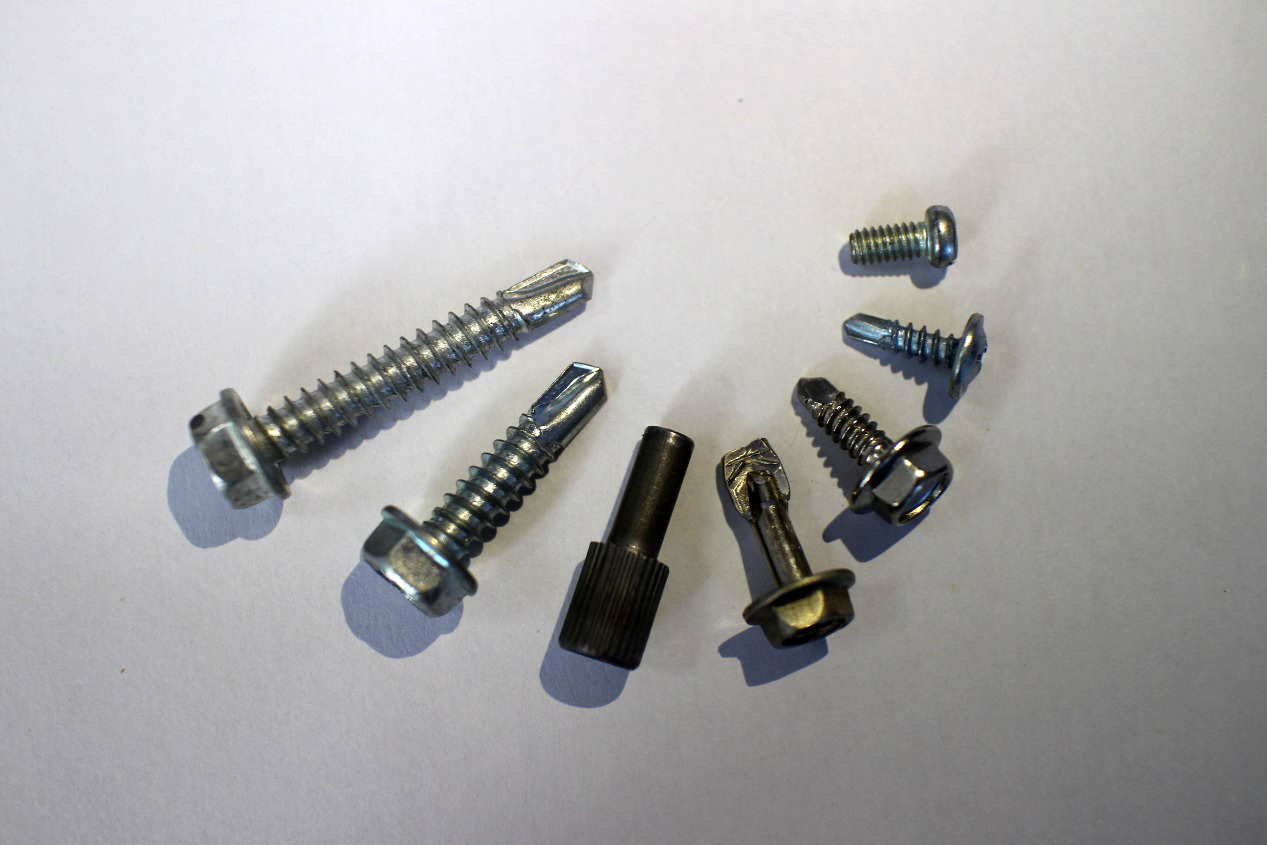

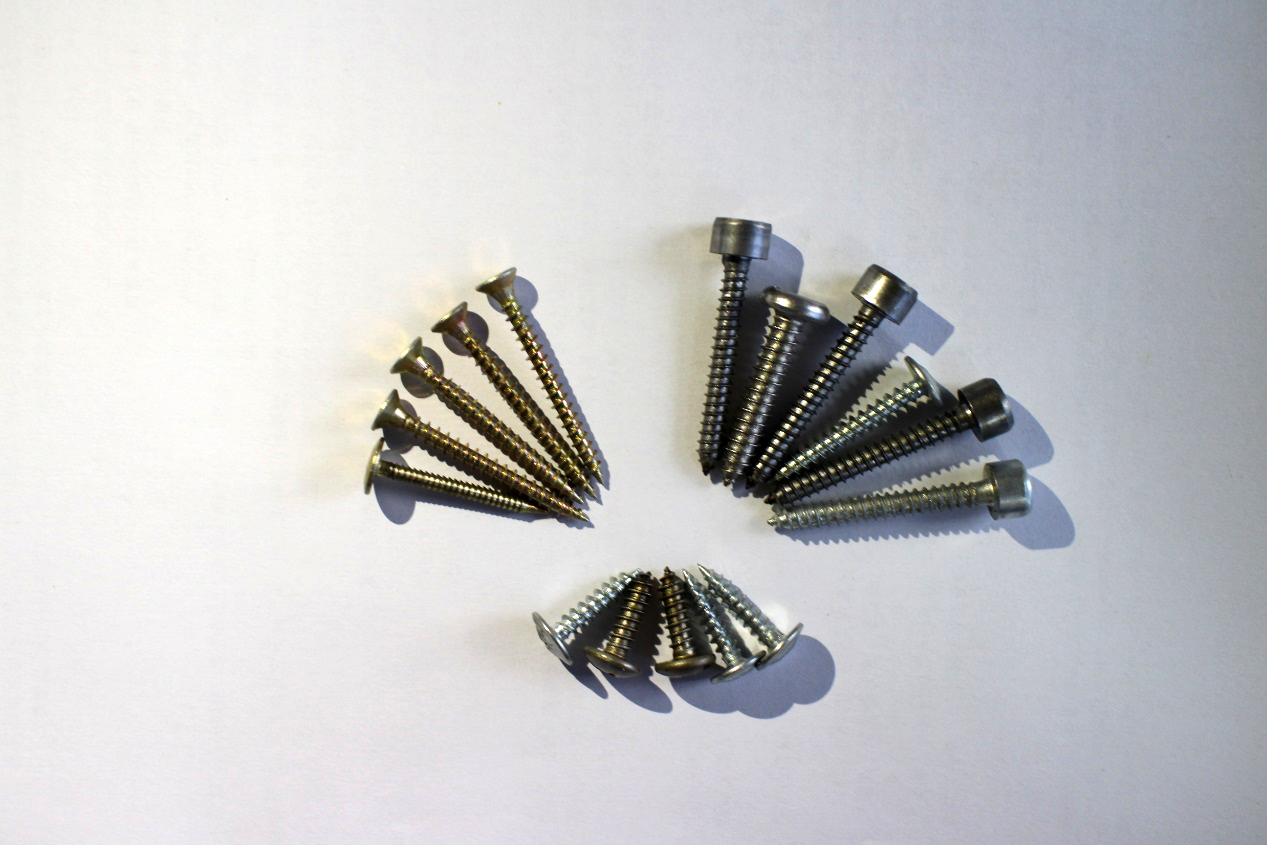

Screw Size can be made(mm) | Max. Length | 150 |
Min. Length | 40 | |
Max.Output (Pcs/min.) | 60 | |
Main Motor (kW) | 11 | |
Oil Pump Motor (HP) | 1/2 | |
Weight (Kg) | 6300 | |
Dimensions(m) | 3.36*1.65*1.8 |
