| Quantity: | |
|---|---|

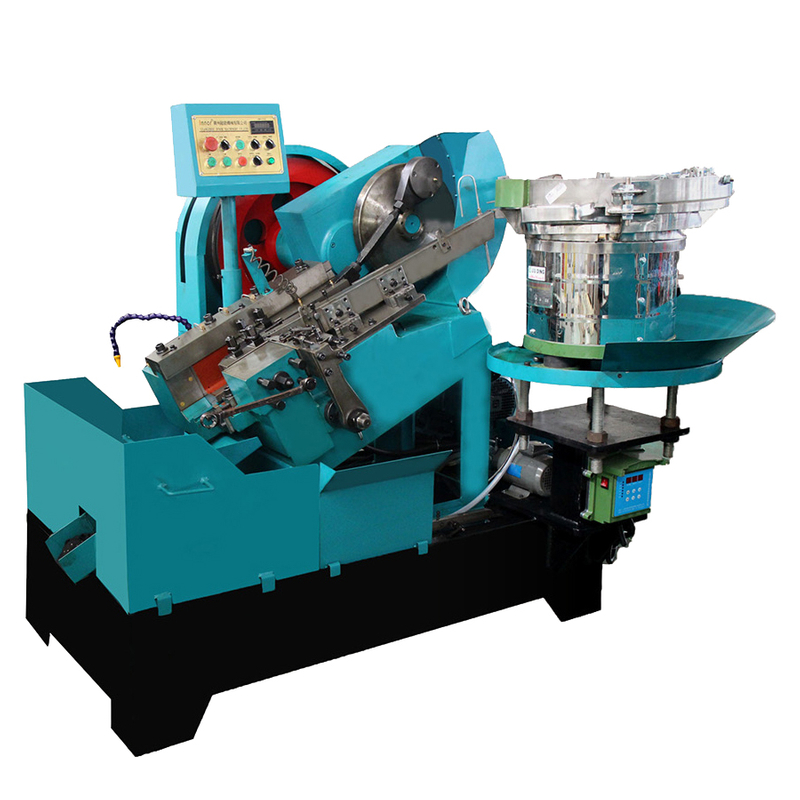

Model | IC8x80 |
Max. Dia./Normal Bolt Size(mm) | 8 |
Max. Length (mm) | 80 |
Dynamic / Static Tooth Board Specification (mm) | 127*25*85 108*25*85 |
Max.Output (Pcs/min) | 140-160 |
Main Motor (kW) | 5.5(7.5HP) |
Lubrication Oil Pump (W) | 25 |
Cooling Oil Pump (W) | 90(1/8 HP) |
Weight (Kg) | 2200 |
Dimensions (m) | 2.14*1.7*1.6 |
Model | IC8x80 |
Max. Dia./Normal Bolt Size(mm) | 8 |
Max. Length (mm) | 80 |
Dynamic / Static Tooth Board Specification (mm) | 127*25*85 108*25*85 |
Max.Output (Pcs/min) | 140-160 |
Main Motor (kW) | 5.5(7.5HP) |
Lubrication Oil Pump (W) | 25 |
Cooling Oil Pump (W) | 90(1/8 HP) |
Weight (Kg) | 2200 |
Dimensions (m) | 2.14*1.7*1.6 |
