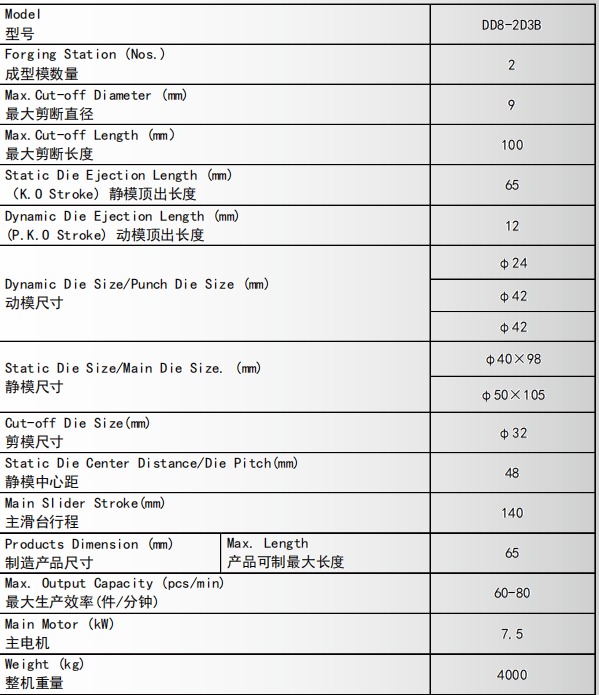

Model | DD 8-2D3B | |
Forging Station (Nos.) | 2 | |
Max. Cut-off Dia.(mm) | 9 | |
Max. Cut-off Length (mm) | 100 | |
Static Die size/ Main Die Size(mm) | Φ40*98 | |
Φ50*105 | ||
Dynamic Die Size/ Punch Die Size (mm) | Φ24 | |
Φ42 | ||
Φ42 | ||
Static Die Centre Distance / Die Pitch (mm) | 48 | |
Main Slider Stroke (mm) | 140 | |
Screw Size can be made(mm) | Max. Length | 65 |
Min. Length | 15 | |
Max. Output (Pcs/min) | 60-80 | |
Main Motor (kW) | 7.5 | |
Weight (Kg) | 4000 | |
Dimensions(m) | 2.76*1.33*1.48 | |
