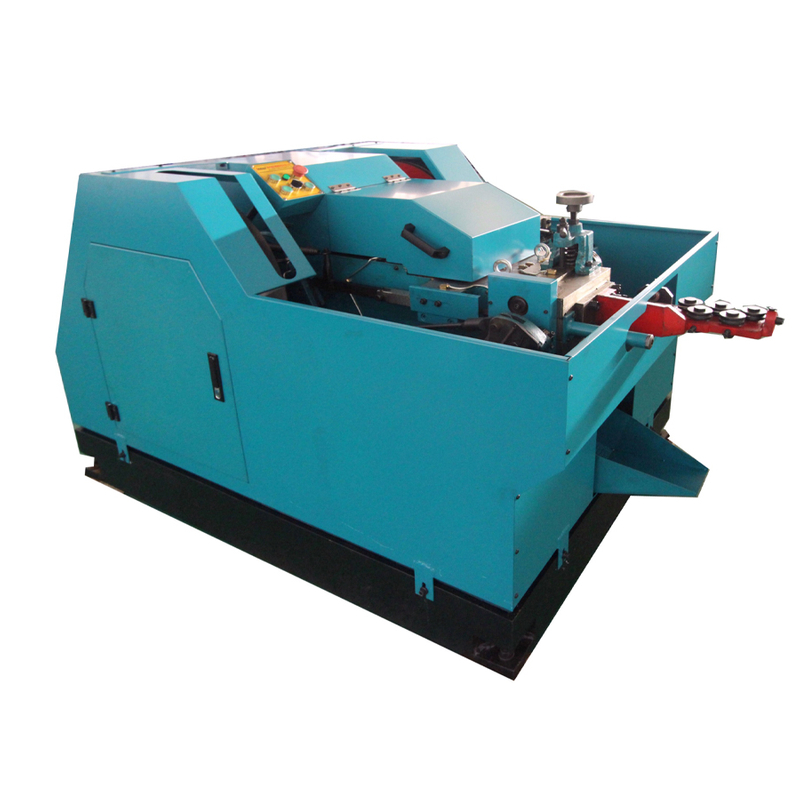

ID 5 X 65

Quantity:

Model

ID 5 X 65

Forging Station (Nos.)

1

Max. Cut-off Dia.(mm)

5

Max. Cut-off Length (mm)

85

Static Die Ejection Length (mm) (K.O Stroke)

90

Dynamic Die Ejection Length (mm)  (P.K.O Stroke)

7

Shear Size (T *W *L mm)

9*32*65

Static Die Holder Size / Main Die Size.(mm)

Φ34.5*80

#1,#2 Punch Die Holder Size

Φ31*60

Cut-off Die Size (mm)



Φ19

Main Slider Stroke (mm)

92

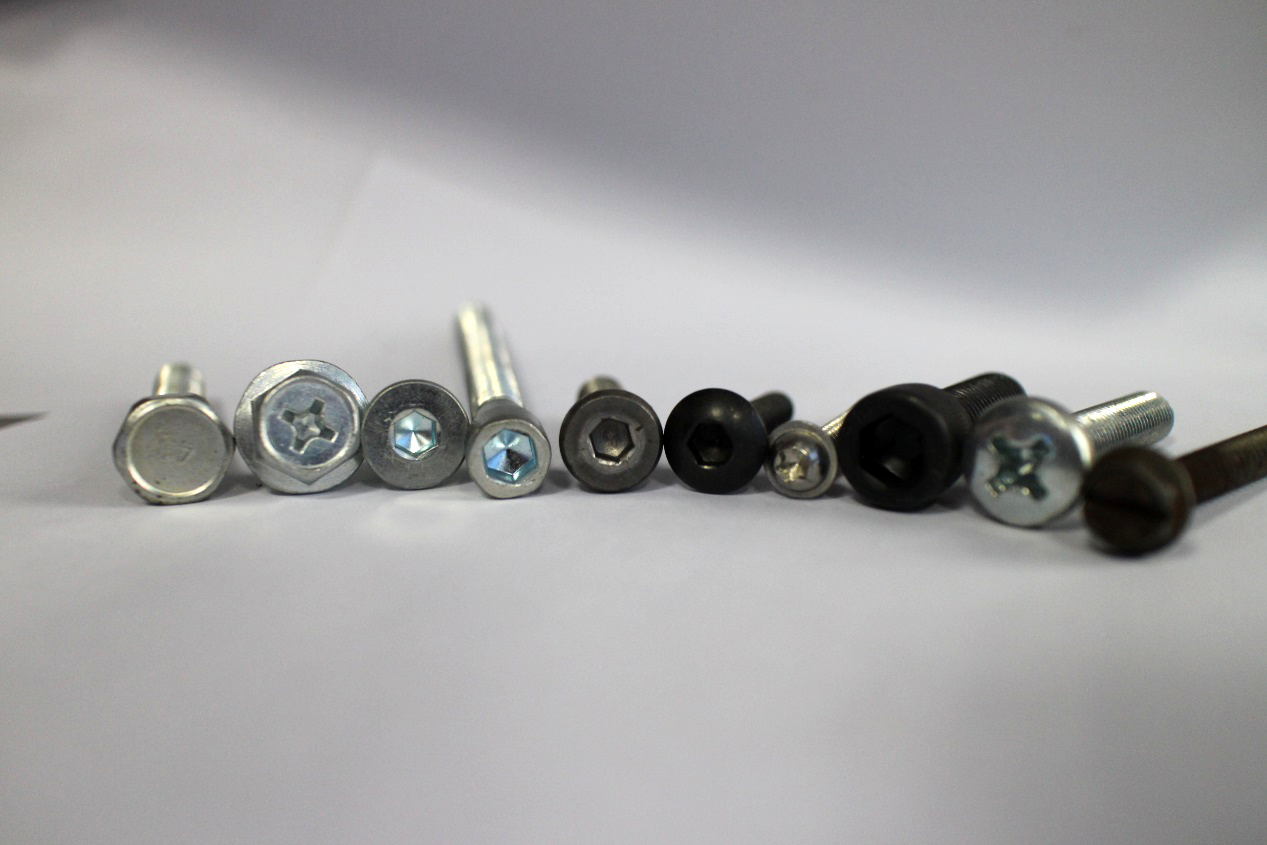

Screw Size can be made(mm)

Max. Length

65

Min. Length

12

Max.Output (Pcs/min.)

120-140

Main Motor (kW)

2.2

Oil Pump Motor (HP)

1/4

Weight (Kg)

1600

Dimensions(m)

1.85*1.1*1.22
